China's pioneering full-sheet
waste stripping machine (Patent No. 202011632469.9) utilizes technologies from
Chinese invention patents, German patents, and Japanese patents, and is
equipped with a powerful "full" waste-removal function. It can
achieve one-time full-sheet waste stripping for products of various shapes,
sizes, mixed box forms, and those with windows in a same sheet.
The innovative quick pin structure has
significantly reduced mold-changing time.
The machine is characterized
by high waste-stripping quality, fast production efficiency, easy operation,
and a small footprint.

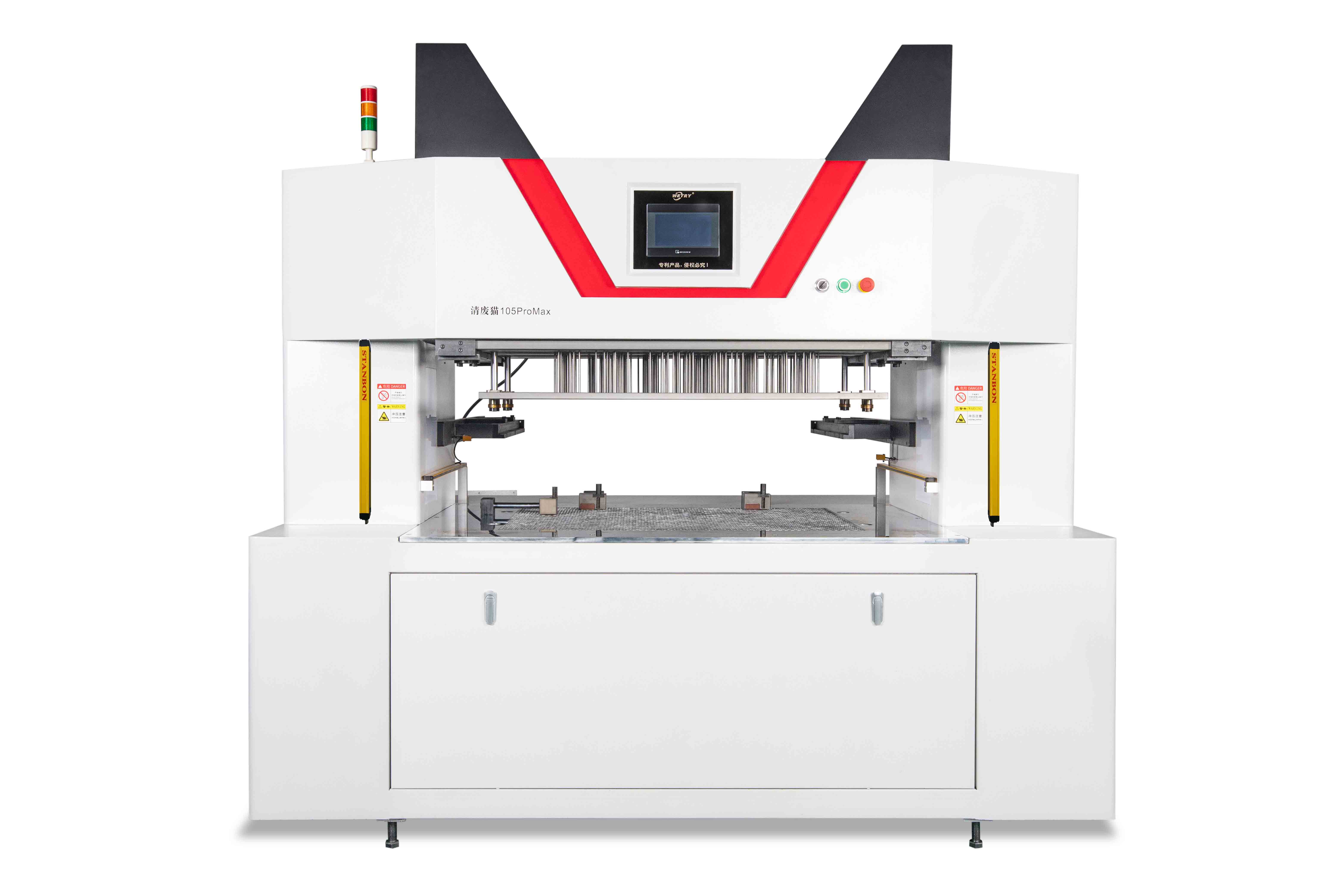

Based on the Catus 105
ProMax, the Catus 105 Ultra has added a movable upper die structure. After the
waste-stripping work of the upper and lower dies is completed, the upper die
automatically retracts backward, facilitating the removal of products. After
the waste is discarded, the upper die automatically returns to its original
position to await the next waste-stripping cycle. The advantage of this
movement is that it does not affect production efficiency and can triple the
waste-stripping output compared to the structure with lower die movement.
Appropriate for all kinds of paperboards, PP
sheet of hang tags, ordinary box, complex shape box, ordinary buckle bottom
box, automatic buckle bottom box and buckle bottom with hook box etc.Wildly
used in pharmacy packaging, food packaging, cosmetic packaging and cigatette
packaging etc.
